| ‧ SAFETY FLANGE NUT |
| |
 |
| Prevailing torque nut with metal insert is designed in accordance with engineering basic
principal. A spring ring is inserted onto a nut, so two pieces are to be formed an integral unit as a
safety nut. When the unt is tighten on the bolt or screw, tensional force on the spring ring ensures the
nut to be locked securely. Within the designed torque limit, this typical nut provides good mechanical
feature and wear characteristics so that nut can be used repeatedly for a reasonable period. Under severe
vibrated or thermal (-30℃ to 300℃ ) operation environment , the nut still maintains its good mechanical
performance. |
| |
|

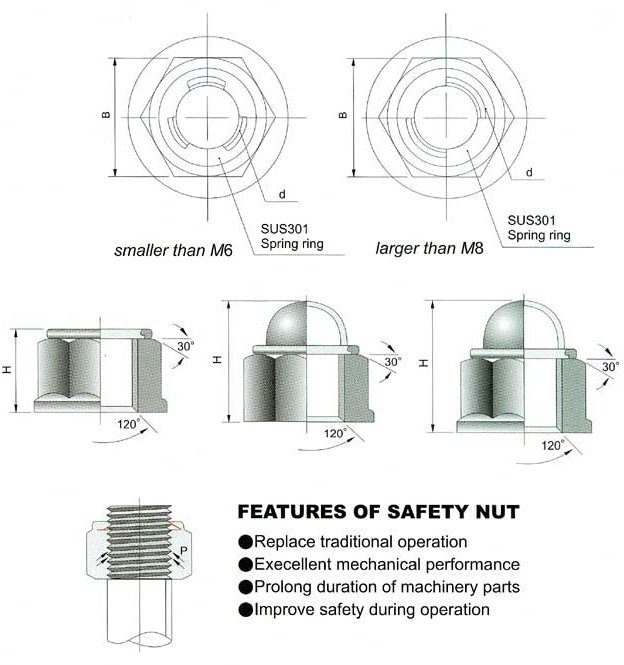

PREVAILING TORQUE FLANGE NUT WITH METAL INSERT
|
|
DIMENSION
|
STANDARD
|
WITH CAP
|
|
SIZE
|
COARSE/FINE
THREAD
|
A/F
B
|
HEIGHT
H
|
HEIGHT
H
|
|
FM-5
|
0.8
|
8
|
6
|
10
|
|
FM-6
|
1.0
|
10
|
6.9
|
|
|
FM-8
|
1.25
|
12
|
8.5
|
14
|
|
FM-8
|
1.25
|
14
|
8.5
|
14
|
|
FM-10
|
1.25
|
14
|
10
|
|
|
FM-10
|
1.25
|
17
|
10
|
|
|
FM-12
|
1.25
|
17
|
12.5
|
|
|
FM-12
|
1.25
|
19
|
12.5
|
|
|
FM-14
|
1.5
|
19
|
15
|
|
|
FM-14
|
1.5
|
22
|
15
|
|
|
FM-16
|
1.5
|
22
|
16.5
|
|
|
FM-16
|
1.5
|
24
|
16.0
|
|
|
FM-18
|
1.5
|
24
|
18
|
|
|
|
| |
|
|
