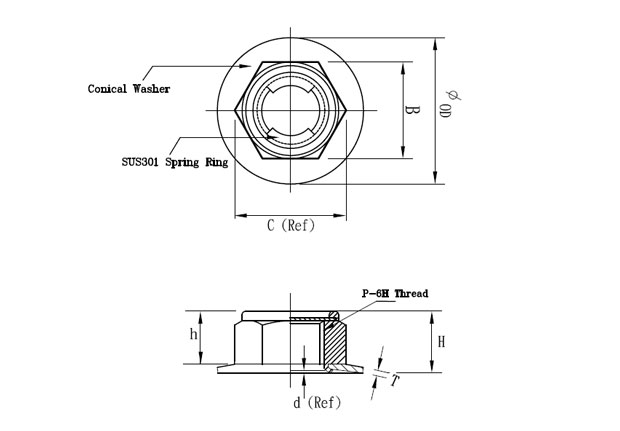

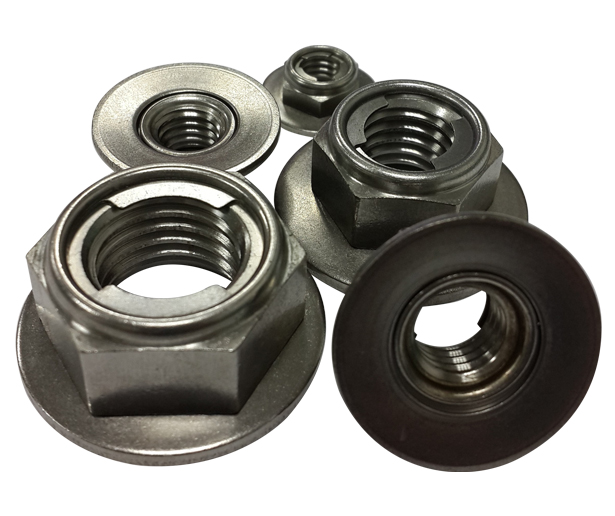

CONICAL RING LOCK NUT

* Nut material could be use : C1010 / C1035 / SUS304 /
* Conical washer material could be use : C1050 / SUS304
* Part name : Conical Ring Lock Nuts (CR-Lock)
* Dimension unit : mm
* All fine pitch sizes will be produced by M.O.Q
* Acceptable Quality Level : MIL-STD-105E LEVEL II

Size

H

h
B

C

Size
P
P1
Standard
Tolerance
Standard
Tolerance
Standard
Tolerance
Ref
M6
1.0
---
6.0
±0.4
4.4
±0.4
10.0
+0/-0.2
11.5
M8
1.25
1.0
9.0
±0.5
7.2
±0.5
13.0
+0/-0.25
15.0
M10
1.5
1.25
10.5
8.4
17.0
19.6
M12
1.75
1.25
13.0
±0.6
10.5
±0.6
19.0
+0/-0.35
21.9
M16
2.0
1.5
14.5
12.0
24.0
27.7


ØOD
T
d
Weight
g/pcs
Standard
Tolerance
Ref
Ref
16.0
+0/-0.2
1.0
0.3
3.0
22.0
+0/-0.25
1.5
0.4
8.5
25.0
1.5
0.6
14.5
30.0
2.0
0.6
23.8
32.0
+0/-0.35
2.0
0.7
35.0
