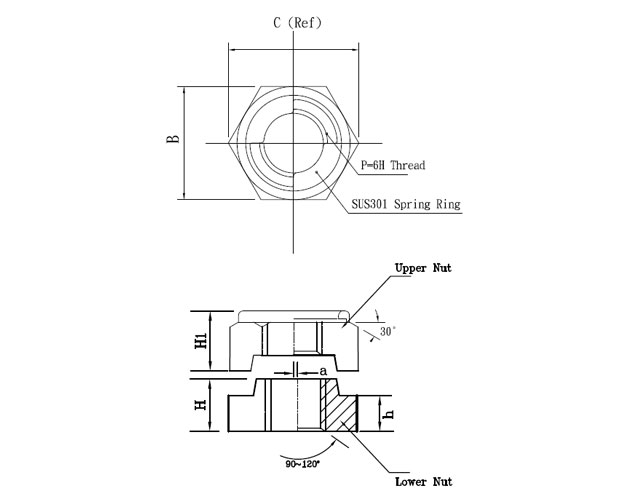

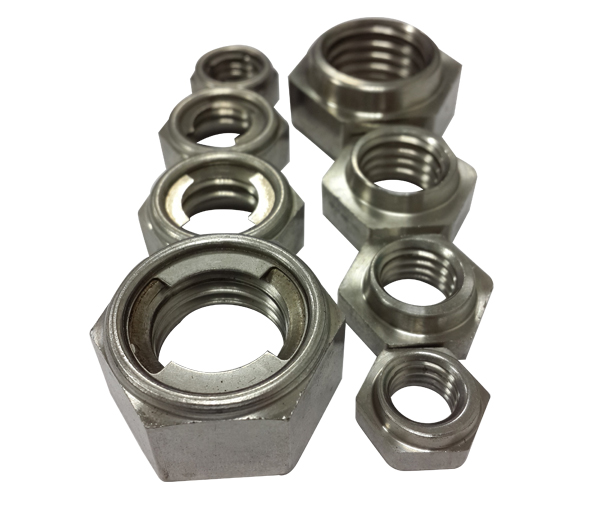

TRIPLE LOCK NUT

* Material could be use : C1010 / C1035 / SUS304
* Part name : Triple Lock Nuts (TP-Lock)
* Dimension unit : mm
* M14, M18 and M22 will be produced by M.O.Q
* All fine pitch sizes will be produced by M.O.Q
* Acceptable Quality Level : MIL-STD-105E LEVEL I

Size

H1

H
B

C

Size
Fine
Course
Standard
Tolerance
Standard
Tolerance
Standard
Tolerance
Ref
M6
1.0
---
5.1
±0.3
5.0
+0/-0.48
10.0
+0/-0.6
11.5
M8
1.25
1.0
7.3
±0.4
6.5
+0/-0.58
13.0
+0/-0.7
15.0
M10
1.5
1.25
8.3
8.0
17.0
19.6
M12
1.75
1.25
10.5
10.0
+0/-0.7
19.0
+0/-0.8
21.9
M14
2.0
1.5
12.2
±0.5
11.0
22.0
25.4
M16
2.0
1.5
14.5
13.0
24.0
27.7
M18
2.5
1.5
16.0
15.0
27.0
31.2
M20
2.5
1.5
17.5
16.0
30.0
34.6
M22
2.5
1.5
19.5
±0.6
18.0
32.0
+0/-1.0
37.0
M24
3.0
2.0
21.5
19.0
+0/-0.84
36.0
41.6


θ/after assembly
h
Torque
Kgf.cm
Weight
g/pcs
Standard
Tolerance
Ref
8.4
±0.6
3.3
45
4.1
11.8
±0.8
4.5
115
9.2
13.8
5.5
220
19.1
17.5
7.0
360
28.9
20.0
±1.2
7.5
650
44.5
24.0
9.5
970
60.9
26.5
10.5
1500
85.1
29.0
11.5
1890
113.8
33.0
13.5
2400
141.7
35.5
±1.8
14.0
2950
199.8
